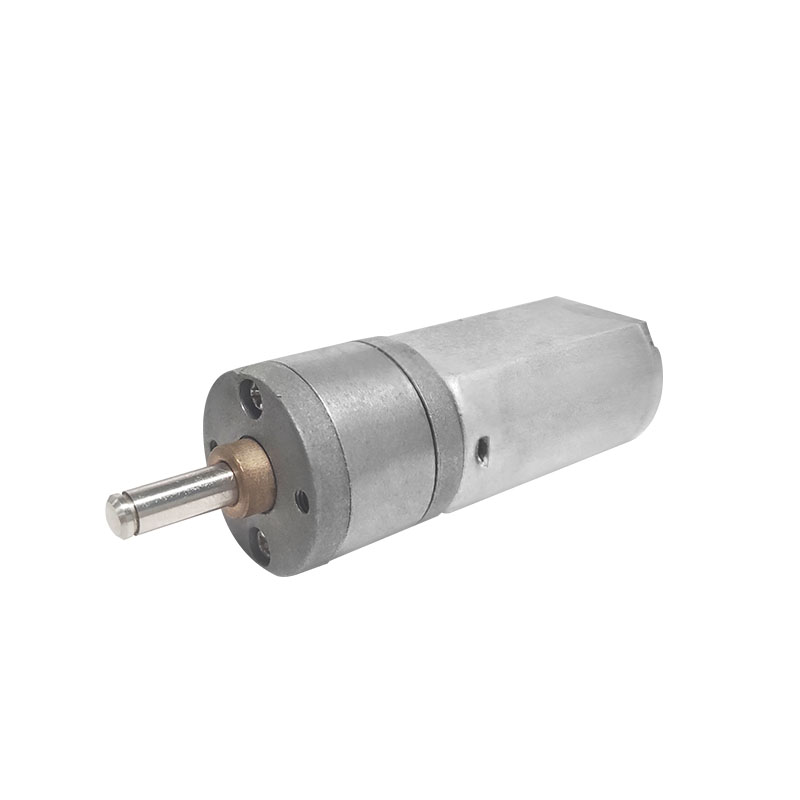

Lepo vabljeni, da pridete v našo tovarno Chaoya in kupite najnovejše, nizkocenovne in visokokakovostne 20 mm 12V/24V/36V čelnega menjalnika brušenih enosmernih motorjev, veselimo se sodelovanja z vami. 20 mm 12V/24V/36V Brušeni enosmerni motorji s čelnim menjalnikom so priljubljena možnost za različne manjše industrijske in komercialne aplikacije. Z leti se je povečalo povpraševanje po prilagoditvah teh tipov motorjev, zlasti rešitev reduktorskih menjalnikov, zaradi česar so bolj prilagodljivi in prilagodljivi posebnim potrebam različnih aplikacij.
Chaoya is a china supplier who produces 20mm 12V/24V/36V Spur Gearbox Brushed DC Motors with many years.we strongly hope to build bussiness relationship with you. This type of motor is available in a range of gear ratios, allowing users to select the optimal ratio, making it fit for specific applications. 20mm 12V/24V/36V Spur Gearbox Brushed DC Motors has various voltage options, such as 12V, 24V, and 36V, allows users to select the optimal voltage for their specific applications, contributing to greater efficiency and reliability. The use of a brushed DC motor also allows for greater control and precision, making it an ideal choice for applications requiring high precision movements, such as in robotics, automation, and other similar applications. 20mm 12V/24V/36V Spur Gearbox Brushed DC Motors is produced by reputable factory in China, The use of high-quality materials and advanced manufacturing techniques ensure products that meet or exceed customer expectations at a competitive price. In conclusion, the 20mm 12V/24V/36V Spur Gearbox Brushed DC Motors are known for their compact size, customizability, and efficiency. Their advanced control technologies, high torque, and flexible voltage options make them an optimal choice for various small-scale industrial and commercial applications.
| korak | 3. korak | četrti korak | peti korak | Šesti korak | sedmi korak |
| Dolžina (mm) | 15.8 | 17.5 | 19.2 | 20.9 | 22.6 |
| Učinkovitost | 68 % | 60 % | 53 % | 46 % | 41 % |
| Reduktorsko razmerje | 9, 12.5 | 22, 25, 31 | 50, 62,5, 78 | 100, 125, 156, 195 | 255, 488 |
| Ocenjeno Turque | |||||
| Trenutna dovoljena Turque |
Opomba: 1. Lahko je opremljen z brušenim motorjem serije 1/brezkrtačnim motorjem
2. Delovna temperatura: -40 ℃ ~ + 80 ℃
3. Izhodno gred je mogoče prilagoditi na zahtevo
| Model | Napetost (V) | Hitrost vrtenja brez obremenitve (rpm) | Tok brez obremenitve (mA) | Navor obremenitve (gf.cm) | Hitrost vrtenja obremenitve (rpm) | Tok obremenitve (A) |
| FF180 | 12 | 9000 | 80 | 55 | 5100 | 0,4 |
| Model motorja z menjalnikom | Reduktorsko razmerje | 9 | 12.5 | 22 | 31 | 50 | 78 | 100 | 195 | 488 | / |
| 20GA-FF180 | Hitrost vrtenja brez obremenitve (rpm) | 1000 | 720 | 409 | 290 | 180 | 115 | 90 | 46 | 18 | / |
| Nazivni navor (kgf.cm) | 0.34 | 0.47 | 0.73 | 1.02 | 1.46 | 2.27 | 2.53 | 4 | 4 | / | |
| Nazivna hitrost vrtenja (rpm) | 567 | 408 | 232 | 165 | 102 | 65 | 51 | 26 | 10 | / |
